TAPPING CHUCKS-REVERSIBLE

TAPPING ATTACHMENTS-REVERSIBLE

PART  NOS: 3850  HR 1; HR 2; HR 3; HR 4

HR SERIES

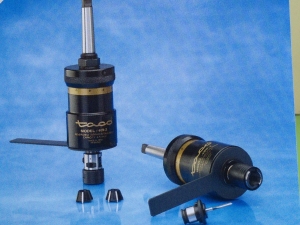

TACO patented reversible tapping attachments with ball drive and  ball clutch are designed to produce accurate tapping for right and left hand threads.

FEATURES:

  • Usable on most  drilling machines with rotating non-reversing spindles
  • Right & left hand vertical or horizontal tapping
  • Ultra sensitive smooth operating ball-clutch-protects against tap breakage
  • Forward & reverse ball drive
  • Axial float cushioned drive ensures smooth tapping, better thread profile and reduced possibility of cross threading
  • Planetary gear reversing mechanism retracts at 175% of forward speeds
  • Accurate depth control

PART NOS.FOR RUBBER COLLET STYLE CHUCKS

HR1
M1.4-M7 with MT1 or MT2

HR2
M3-M12 with MT2 OR MT 3

HR3
M8-M20 with MT3

HR4
M14-M30 with MT4
All chucks supplied complete with arbor & collets
Additional arbors, rubber collets and die holders available.

NON-REVERSING TAPPING ATTACHMENTS – FOR RADIAL DRILLS

PART NOS: 3855

For use on any machine with reversible spindle.
Can be used vertically or horizontally.
Features:

  • Radial parallel float
  • Tension & compression compensation
  • Ball drive
  • Safety ball clutch designed for continuing bottoming of tap for RH operation
  • LH available as special order

RUBBER COLLET STYLE
– M 3-M 12 with MT 2 or MT 3
– M 8-M 20 with MT 3 or MT 4
– M 14-M 30 with MT 4 or MT 5

QUICK CHANGE ADAPTOR STYLE
– M18-M42 withMT5

Non-reversing chucks M60, M120 & M200 available.

SKU: TAP419 Category:
